Honeycomb Panel
Rapid smoke extraction toprotect the tabletop

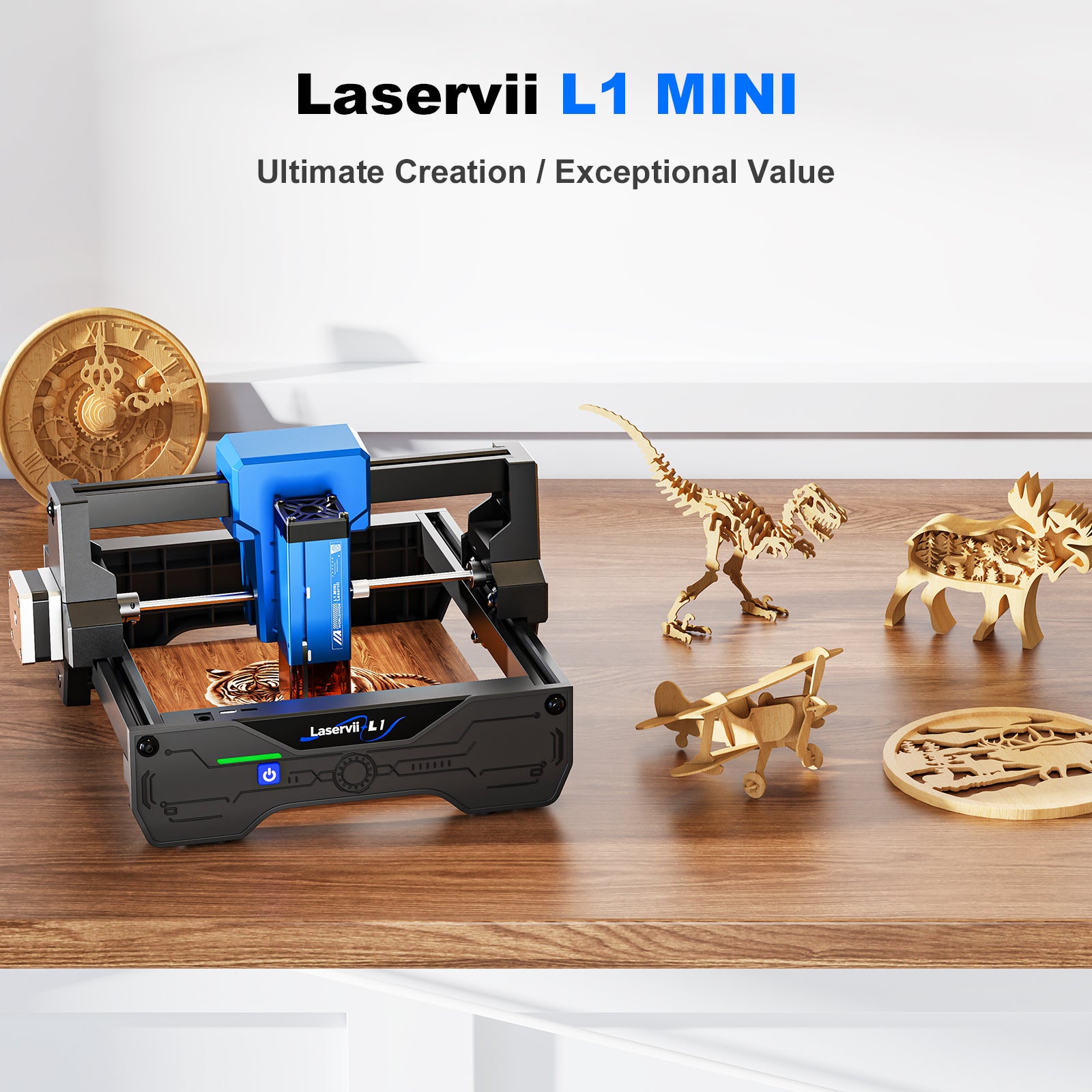

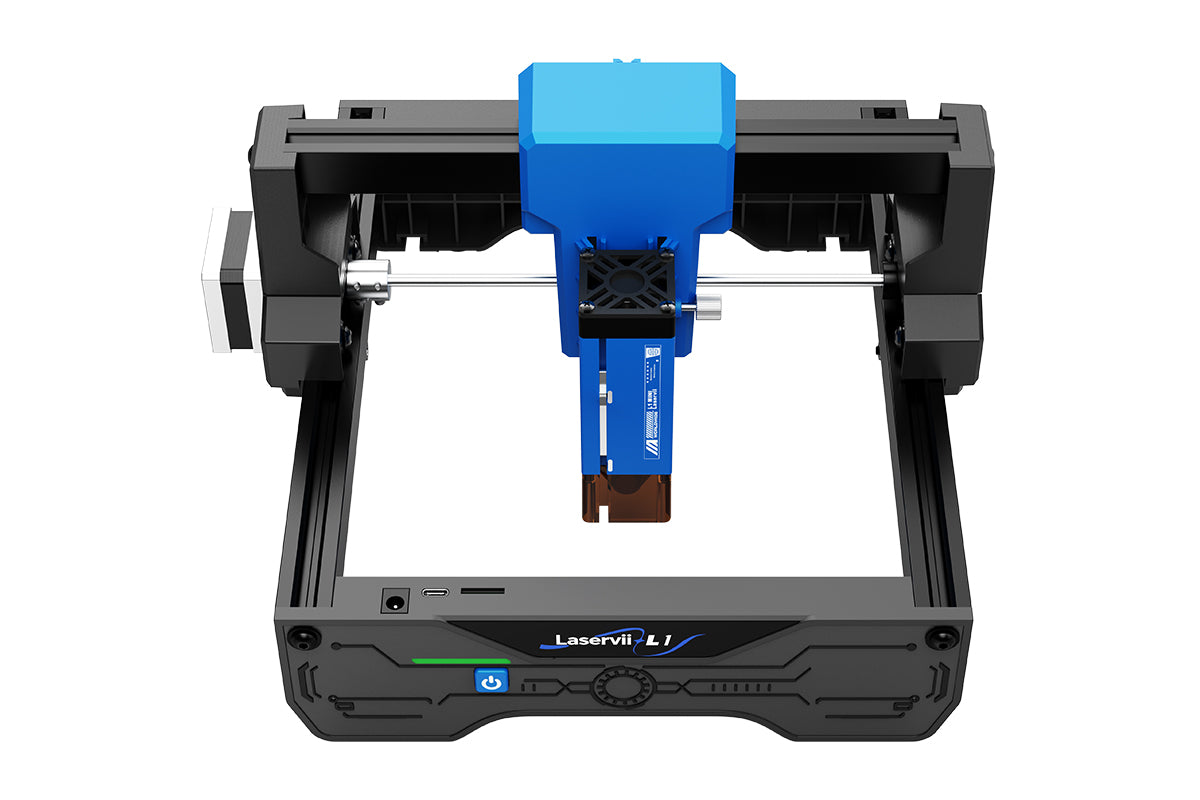

BUY NOWLaservii L1 3W Mini Laser Engraver
Regular price
$157.00
Sale price
$157.00
Regular price
$279.00
Unit price
per
SAVE $122.00
Shipping calculated at checkout.
Couldn't load pickup availability
- BEST PRICES
- WELL TRUSTED
- EXPERT HELP
Unparalleled detailreproduction capability
Ultimate Creation Exceptional Value
Laser Power
3 Watts
Meet the Entry Requirements

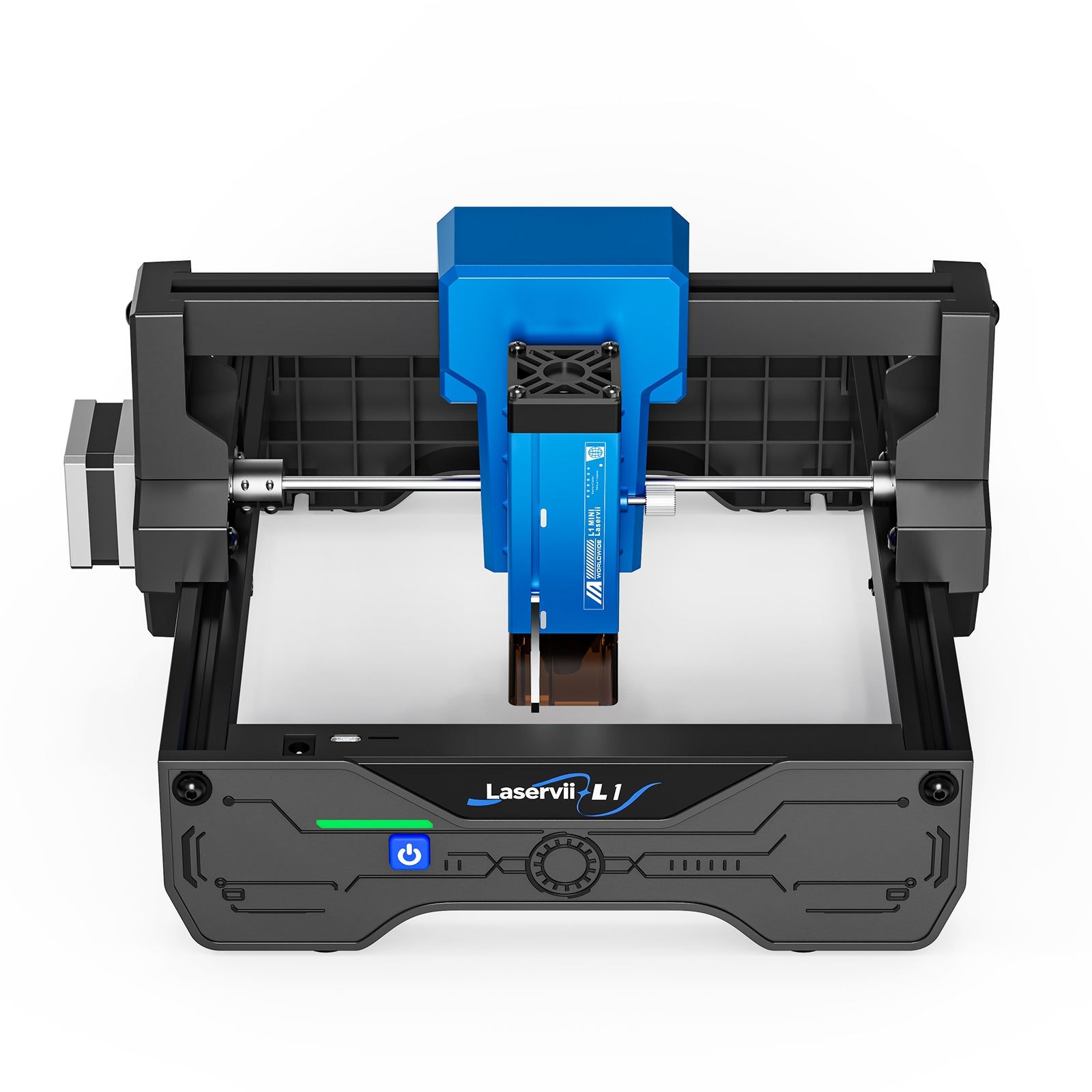

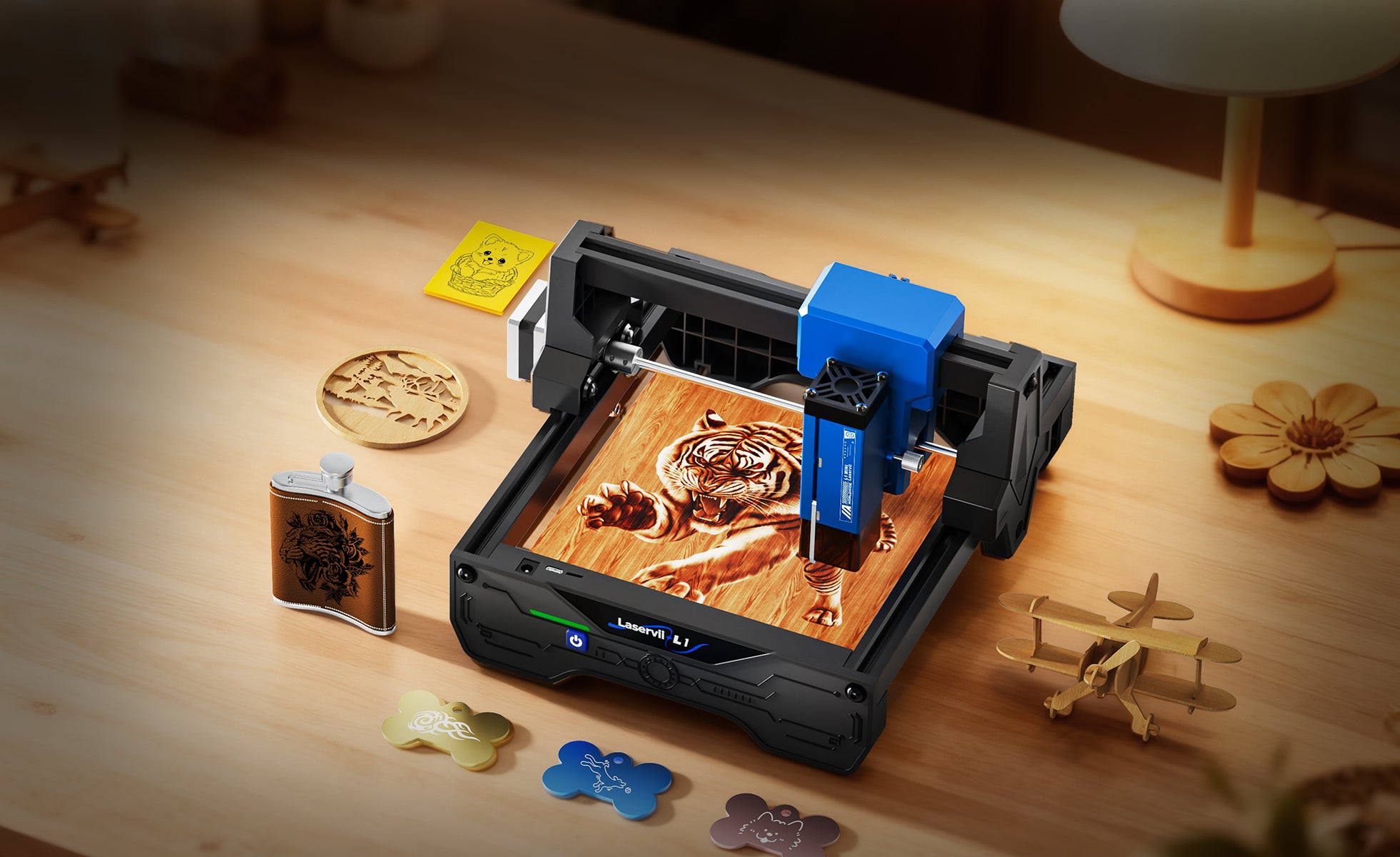

Mini Laser Engraver

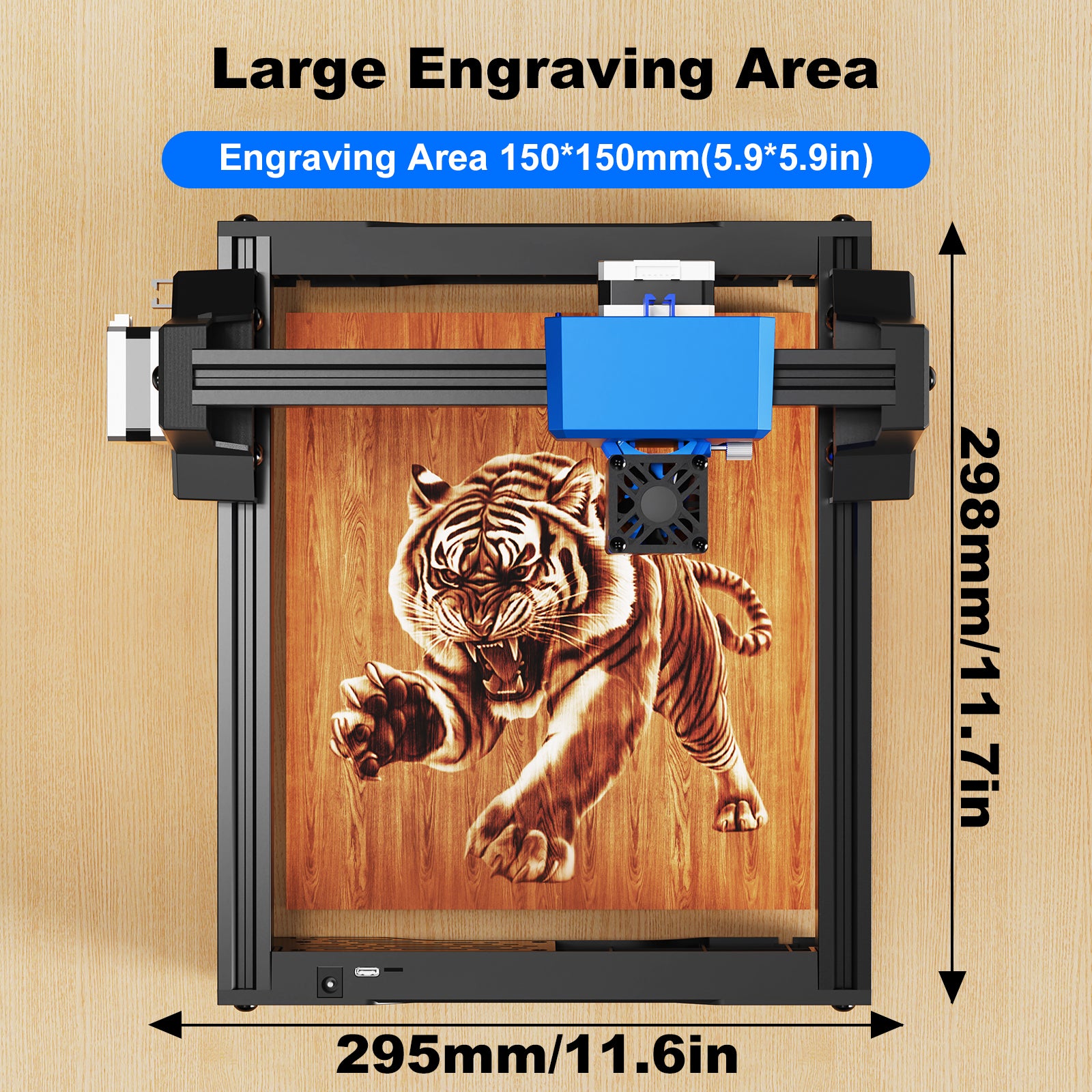

5.9" × 5.9"
Working Area
Fastest Speed
12000 mm/min
Big Time Saving on Engraving

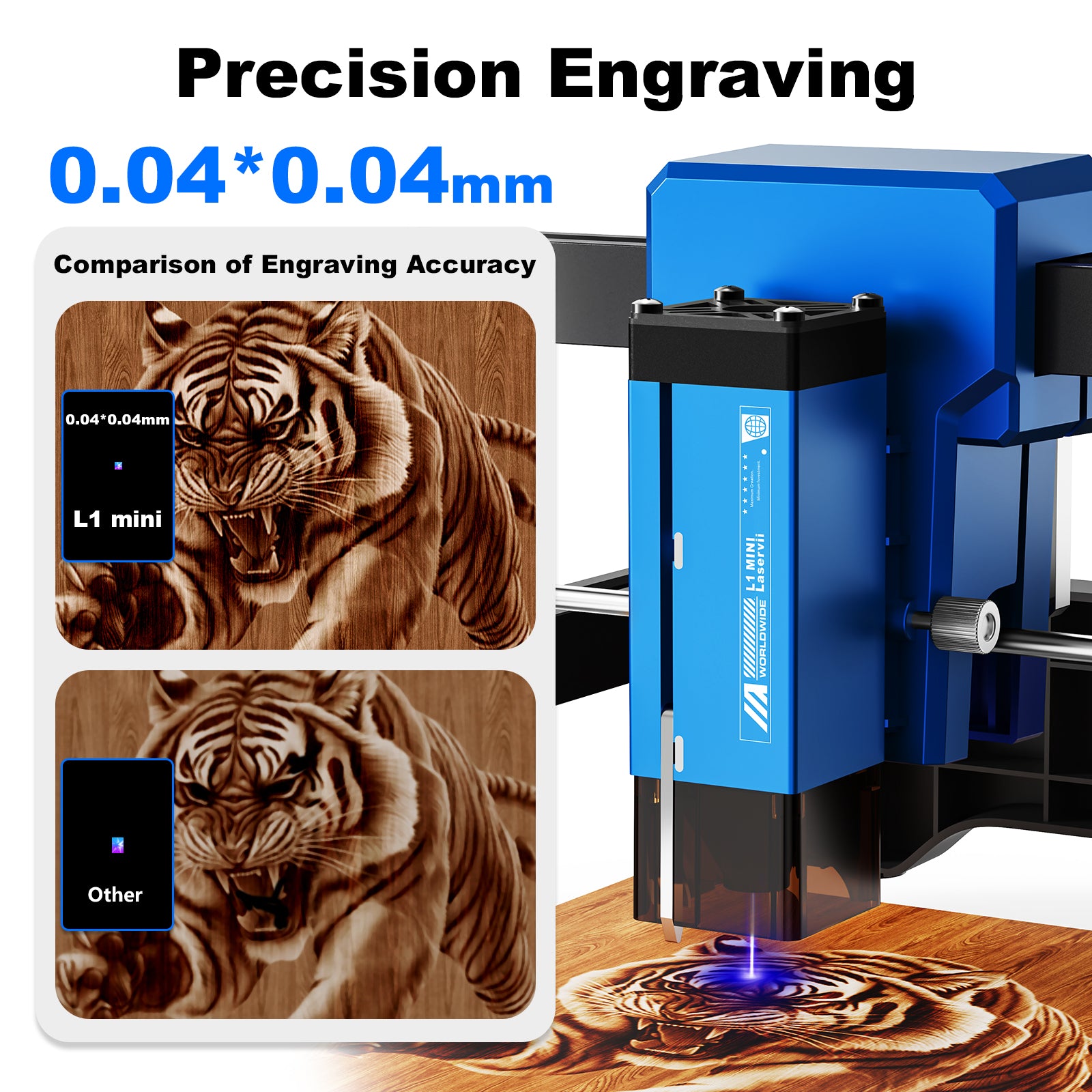

Engraving Precision
0.04*0.04 mm
Ultra-small Laser Spot
Outstanding Performance
3W Laser Power

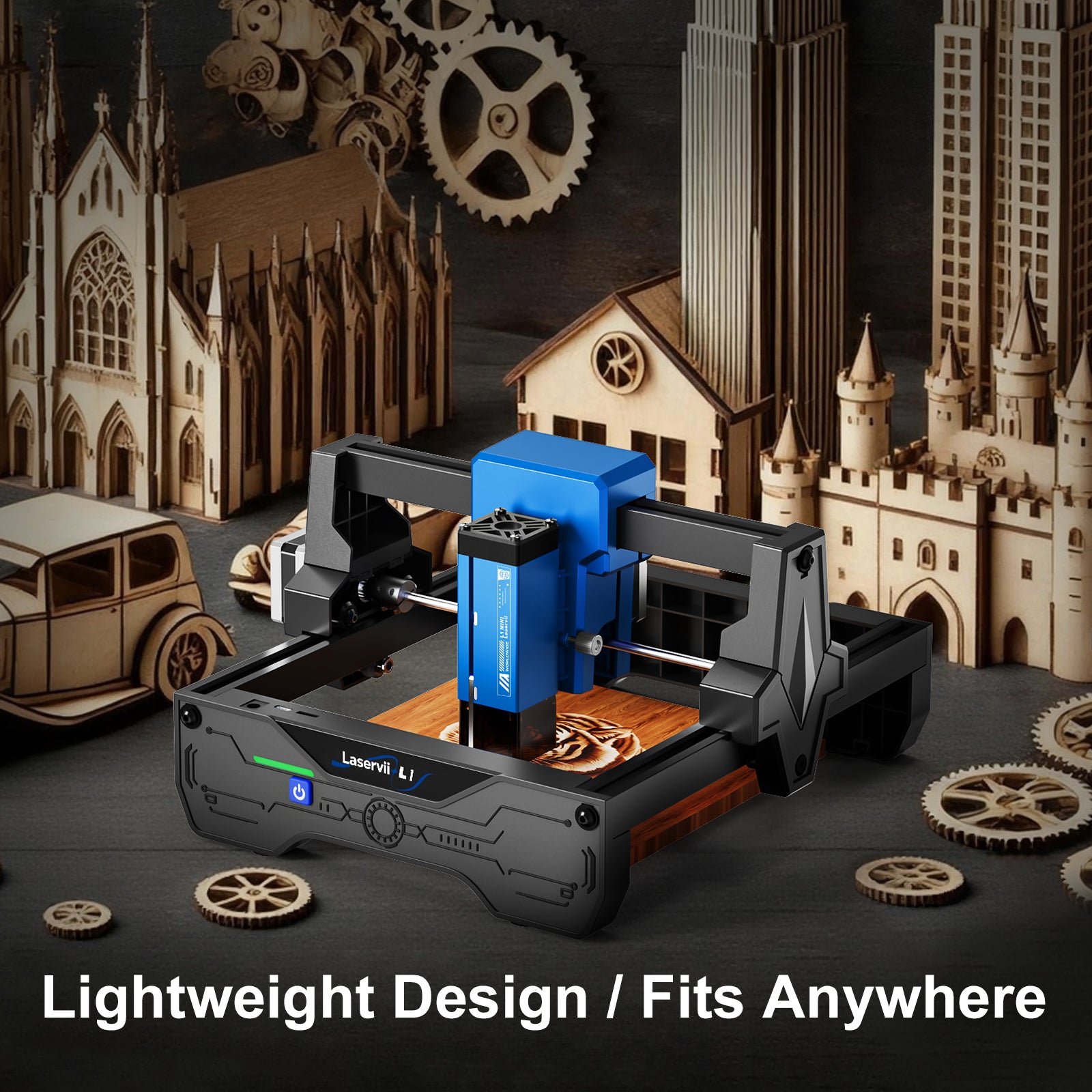

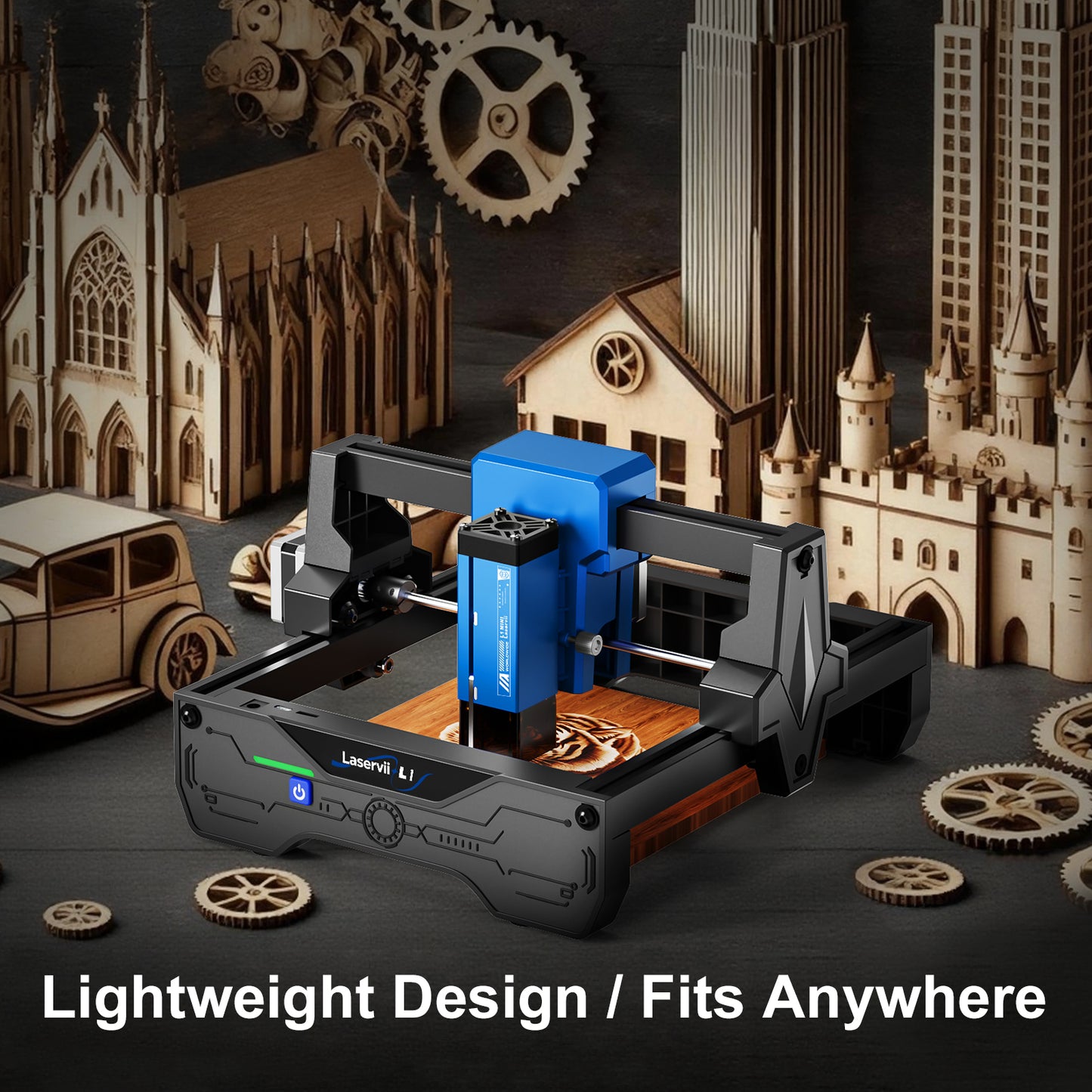

Lightweight Design
High-Speed Engraving
Delicate lines

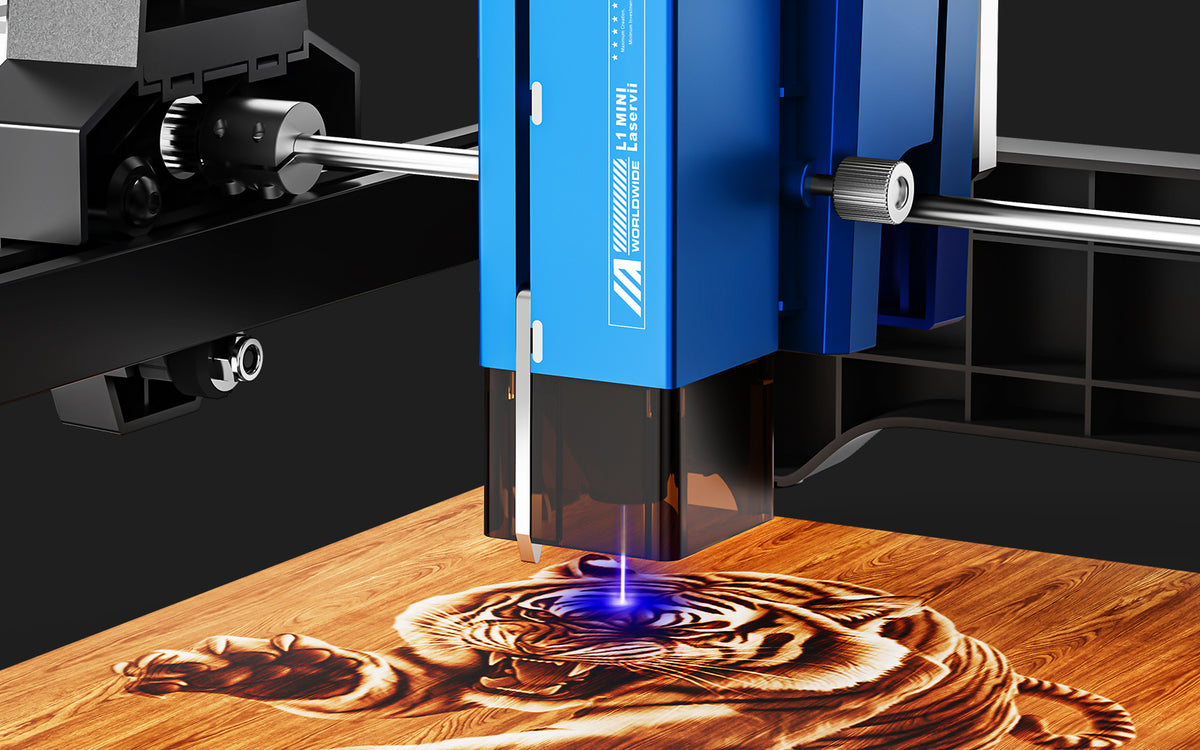

Featuring a 3W Laser Module, It Is Suitable for Entry-Level Use With Low Radiation Risk.This Makes It Ideal For Non-Industrial Settings Such as Homes, Classrooms, and Offices.

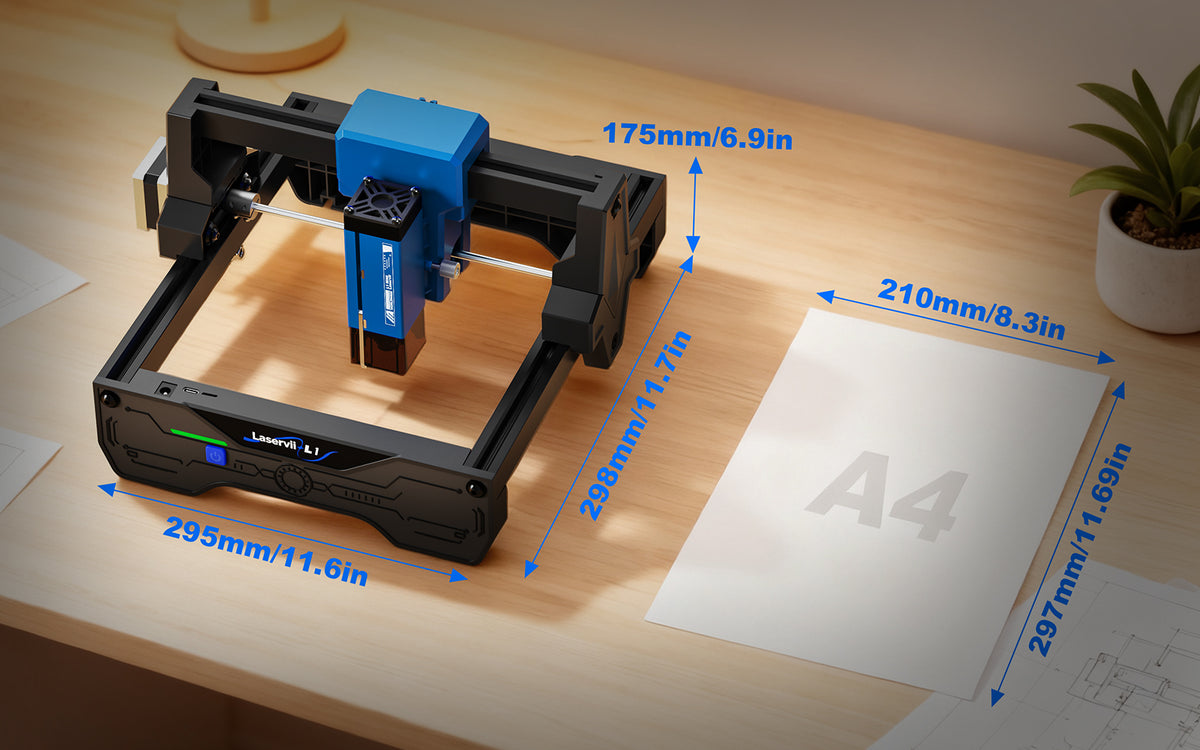

The Biggest Advantage Is That It doesn't Take Up Much Space. It Can be Easily Placed On a Desk, Workbench, or Even a Cabinet, Making It Ideal For Home Studios, Small Offices, Classrooms, Apartments, or Other Spaces With Limited Room.

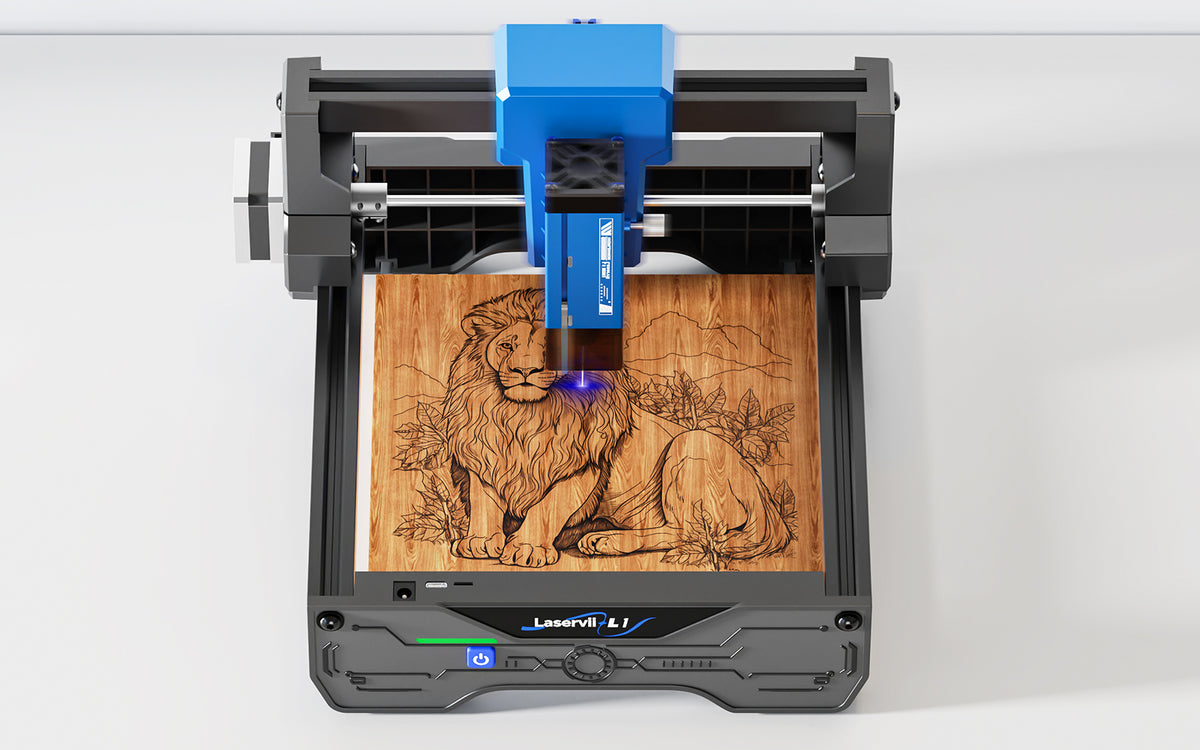

The Time Required to Complete a Piece of Work Has Been Reduced From Hours to Minutes, or Even Seconds. This Means The Number of Orders That Can be Fulfilled Within an 8-hour Workday Has Increased Exponentially.
Capable of Engraving Extremely Fine Lines, Dots, and Textures That are Barely Discernible to The Human Eye. Whether It's Intricate Engineering Blueprints, Delicate Signatures, The Strands of Hair in Portraits, or Tiny QR Codes, It Reproduces Them With Clarity and Precision. Achieving “What You See is What You Get.”

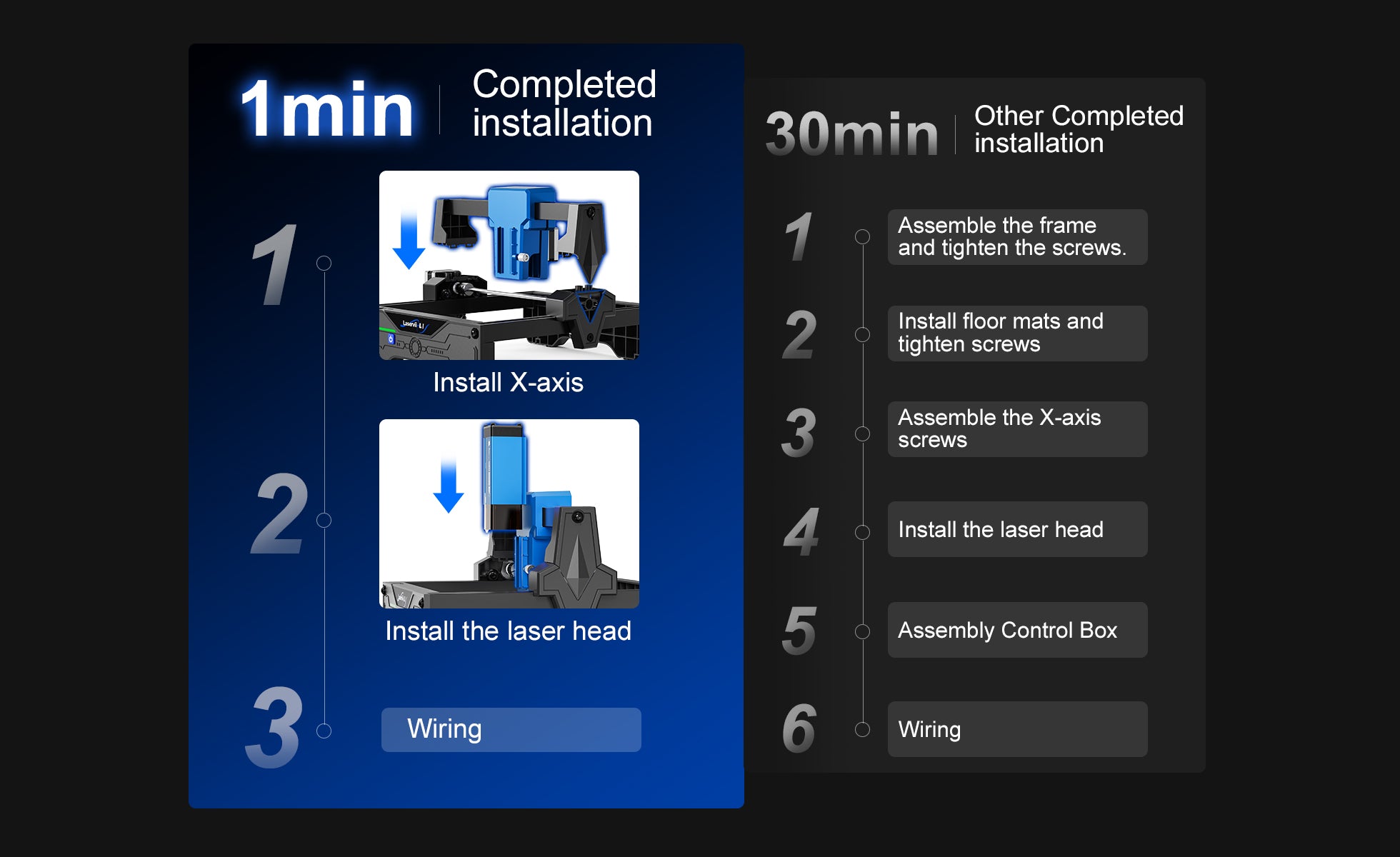

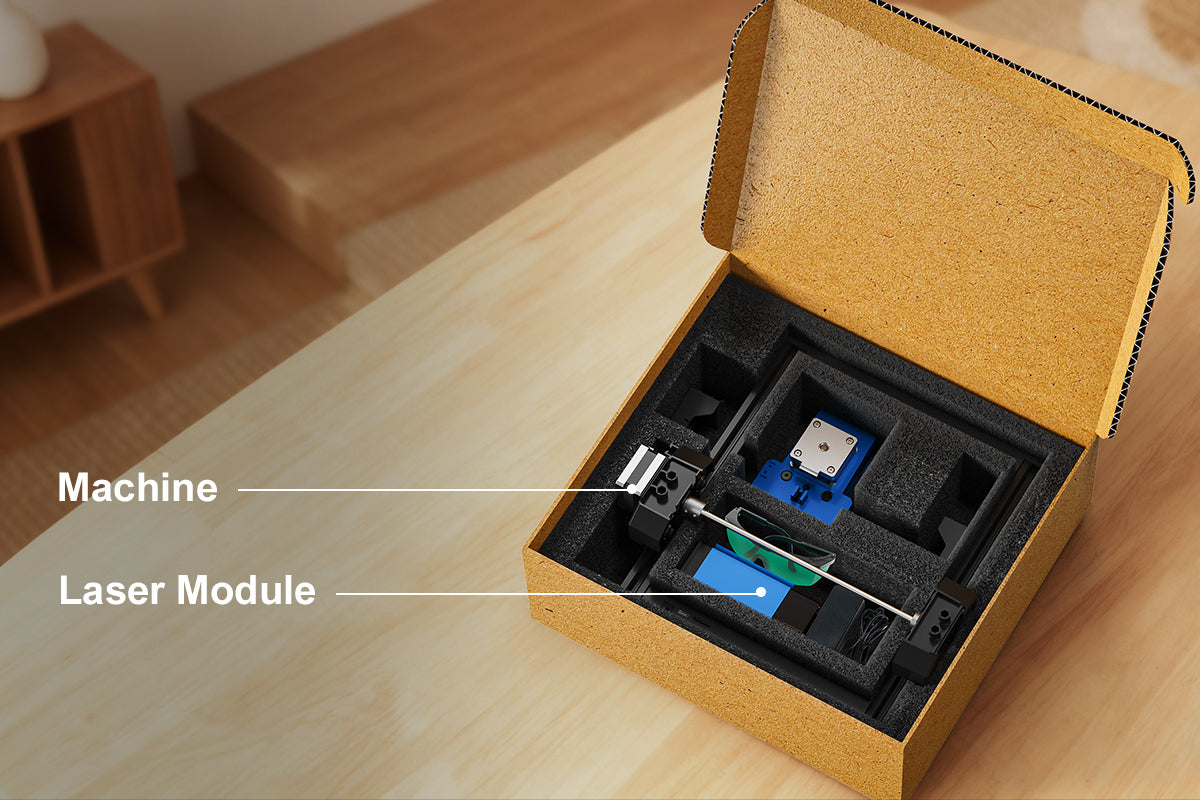

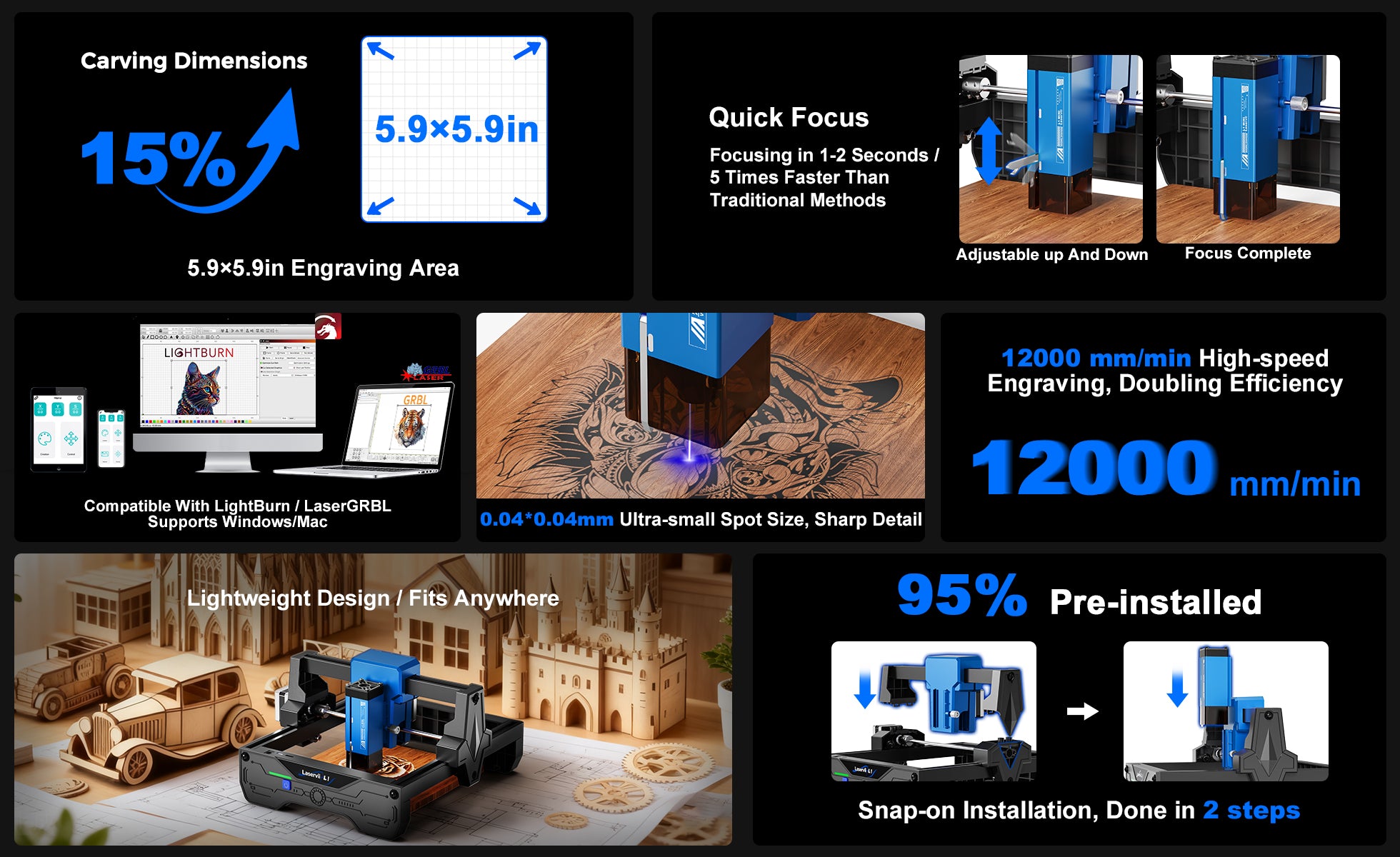

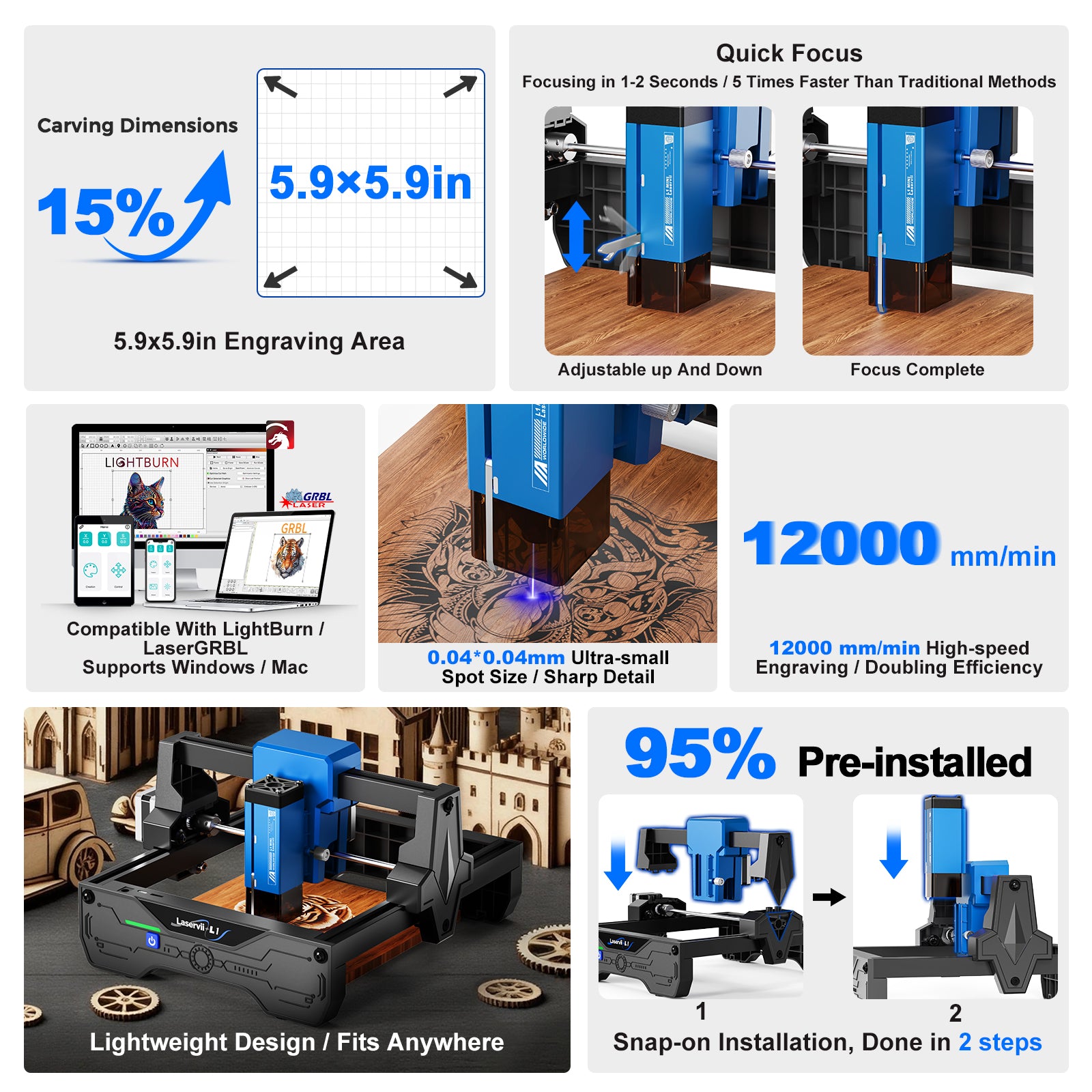

95% Pre-installed
The above steps are the installation steps
Precision unlocks greater creative freedom.
-
Craft Enthusiasts
Engraving Wood, leather, Acrylic, Stainless Steel, Paper, Foam Doard
-
Designer
Prototyping And Model Making
-
Educator
Teaching Demonstrations, Student Practice
-
Home users
Personalized Gifts, Home Decor

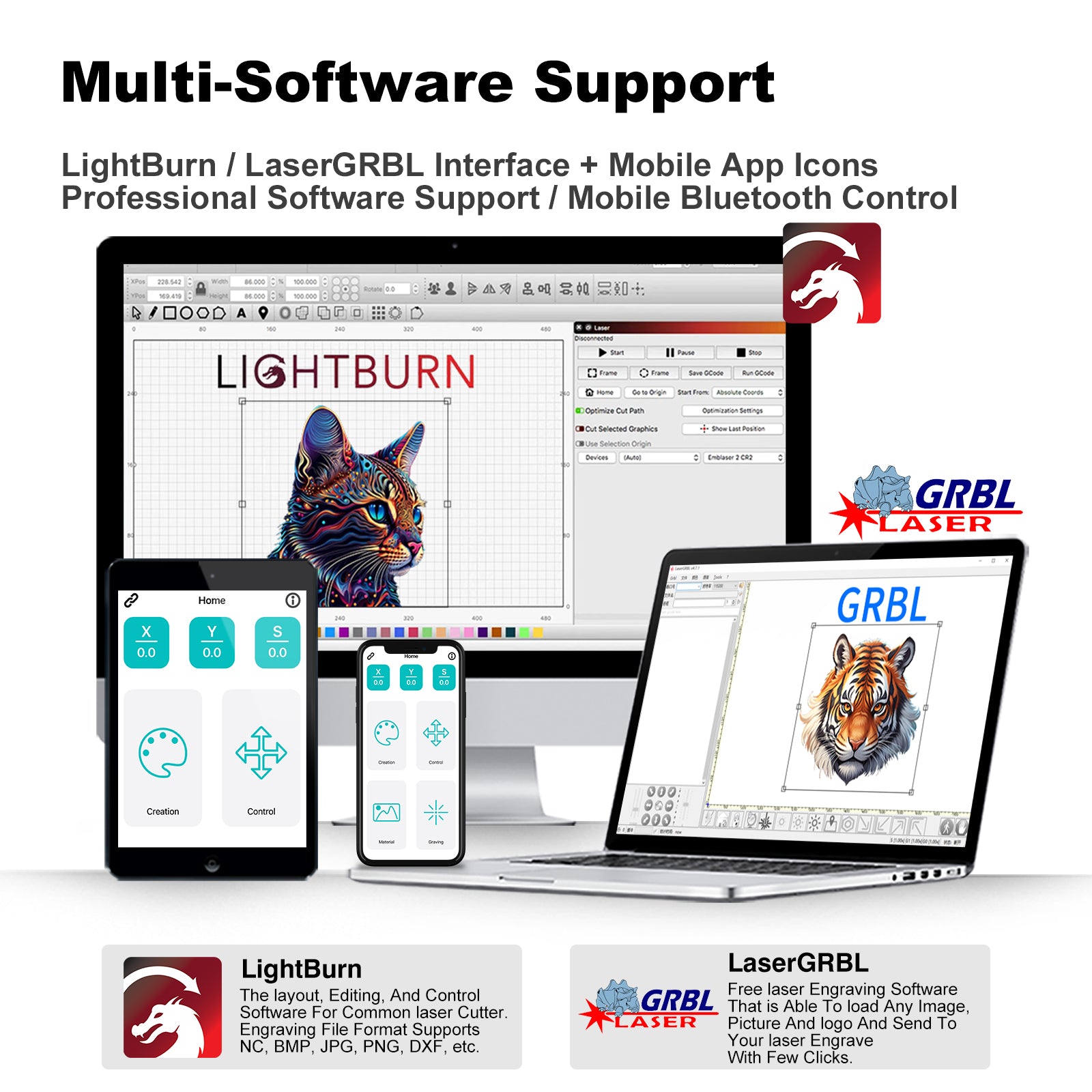

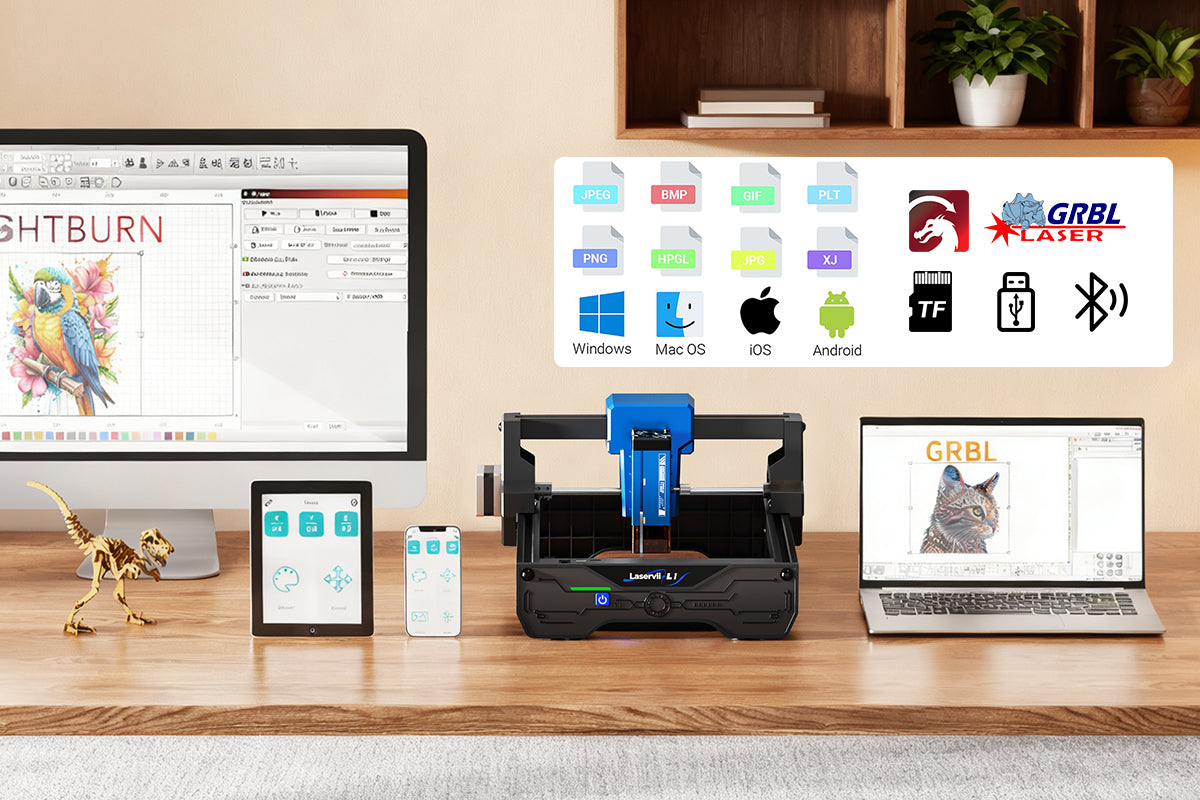

Professional Software Mobile Remote Control

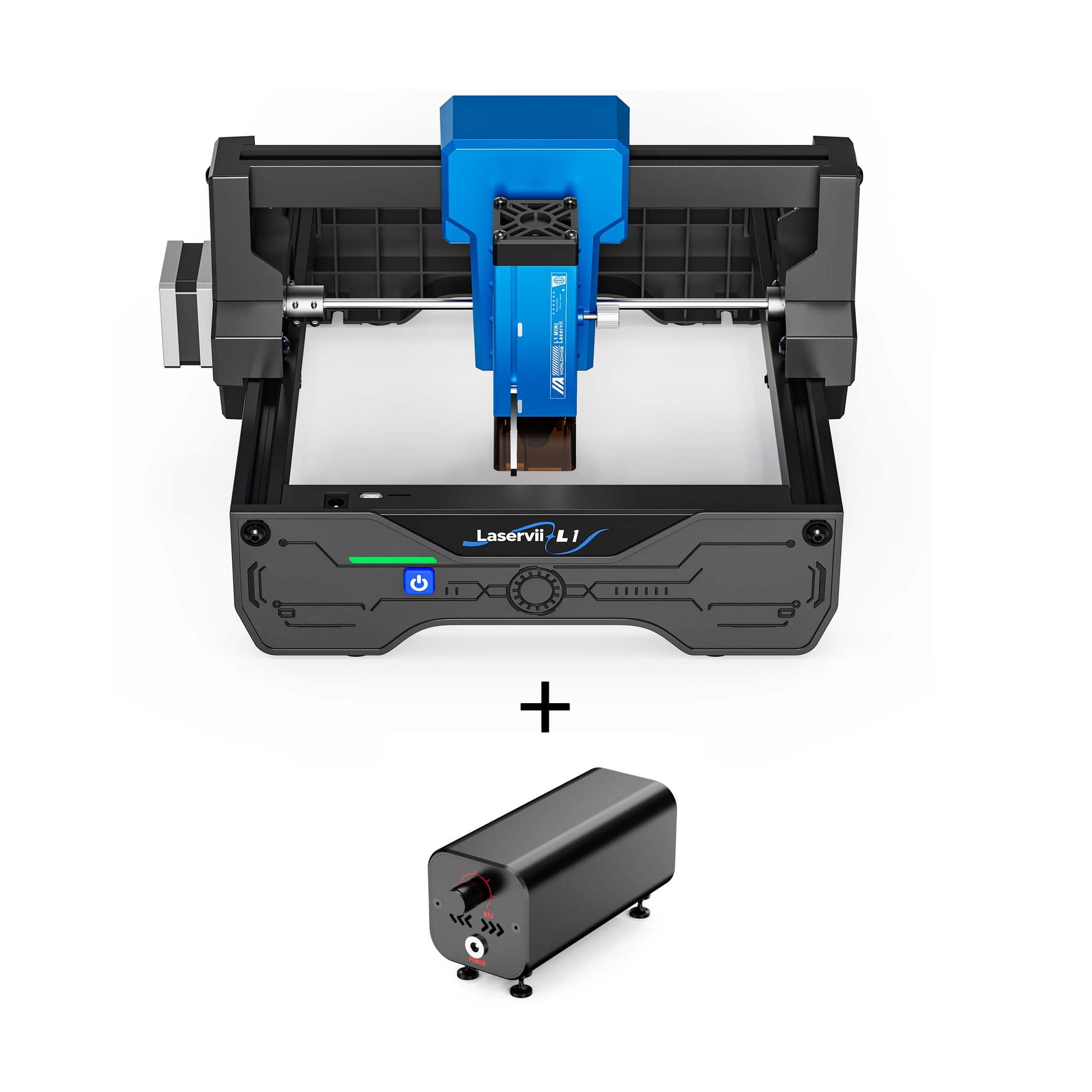

Diverse accessory options

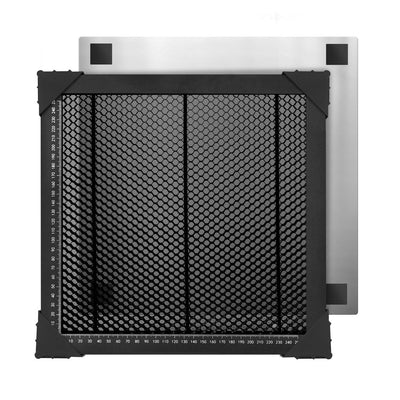

Honeycomb Panel

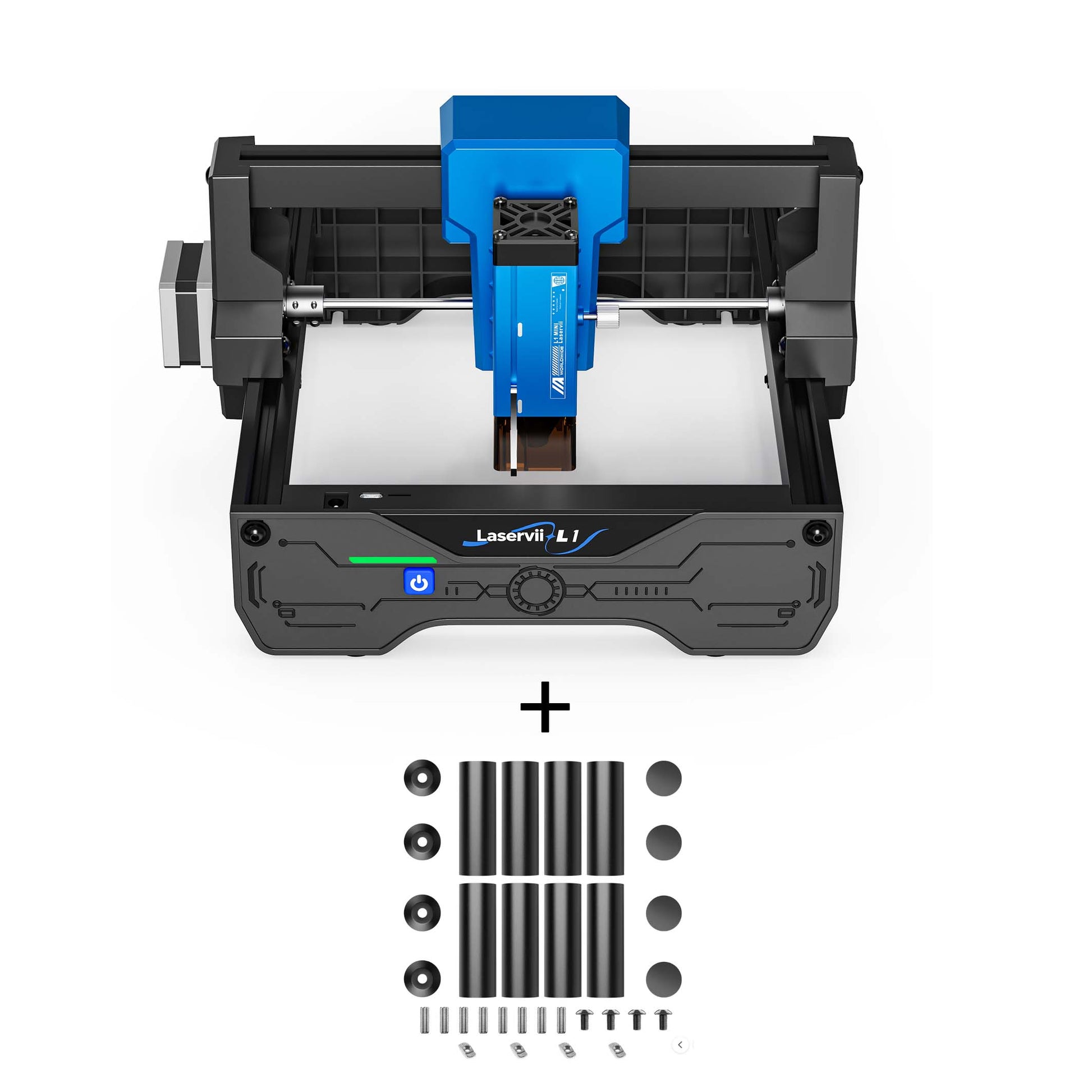

Elevation Column
Rotary Module

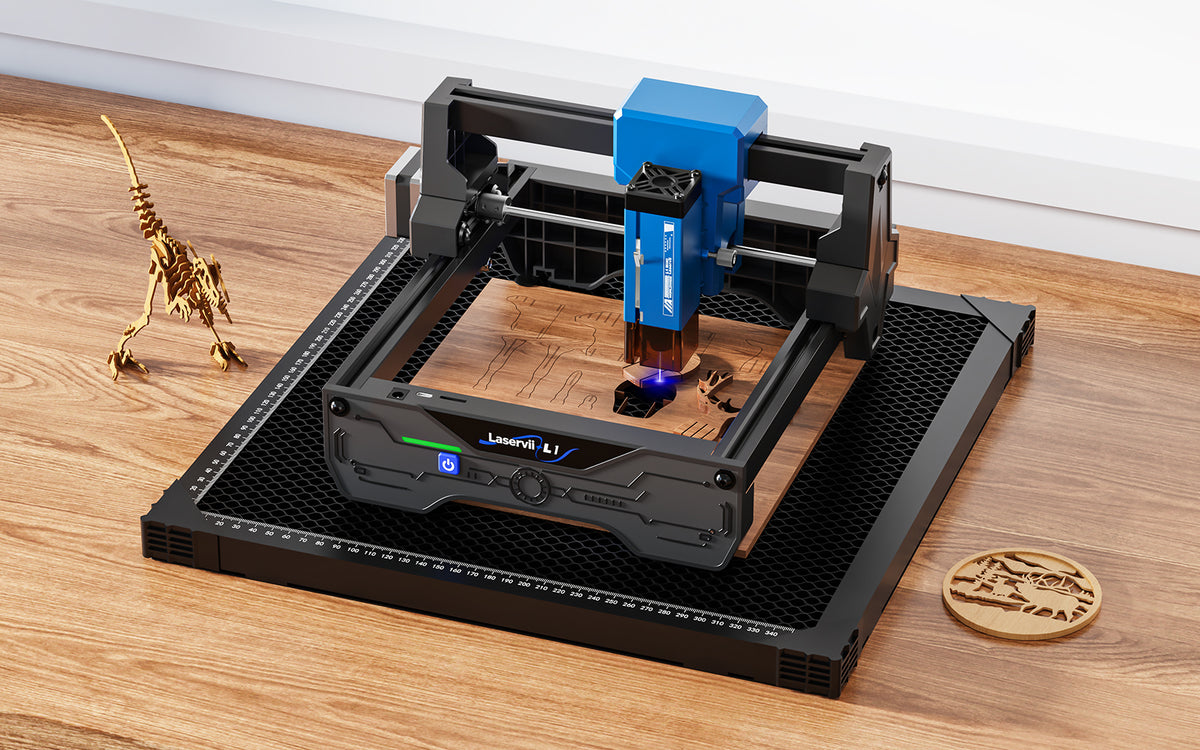

Supports Engraving Materials, Rapidly Exhausts Engraving Fumes, Ensuring Both The Quality of Engraved Pieces And a Clean Operating Environment.

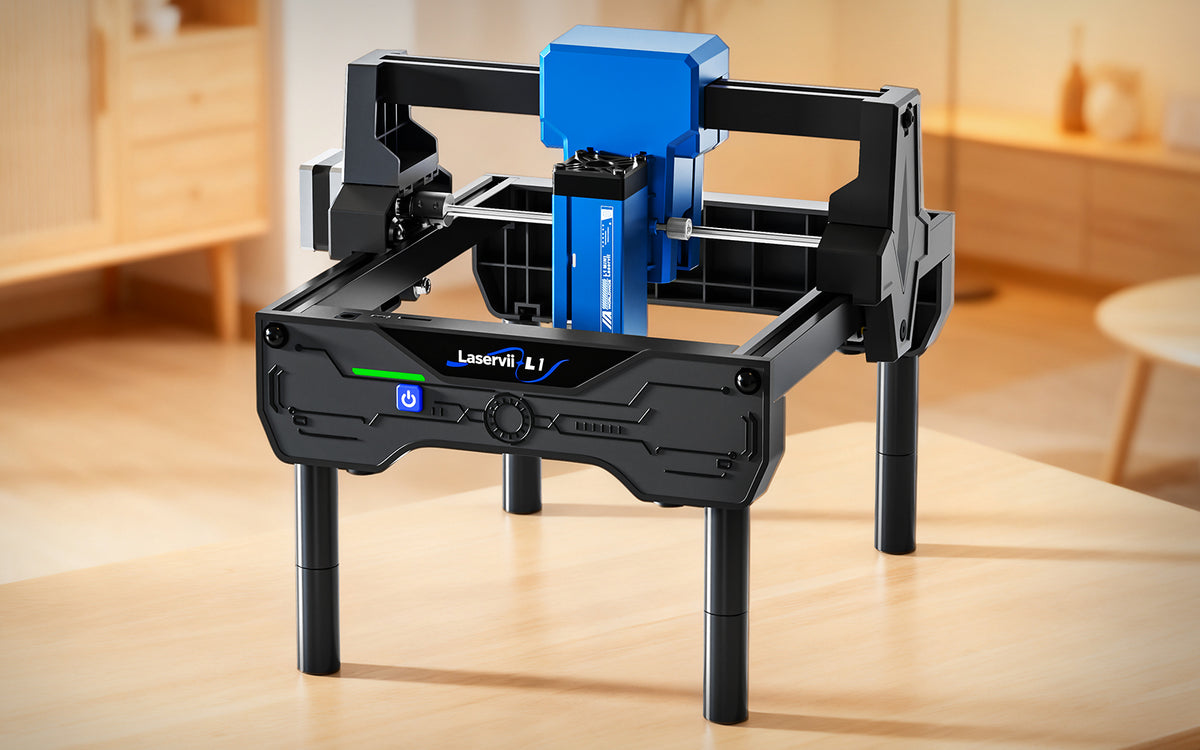

The Core Unit is Designed to Mount Rotating Modules While Allowing For Adjustable Height to Accommodate Expansion Needs And Ensure Operational Convenience.

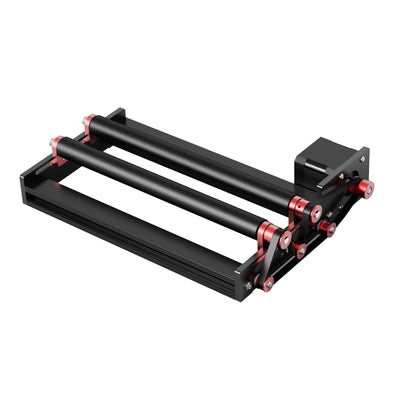

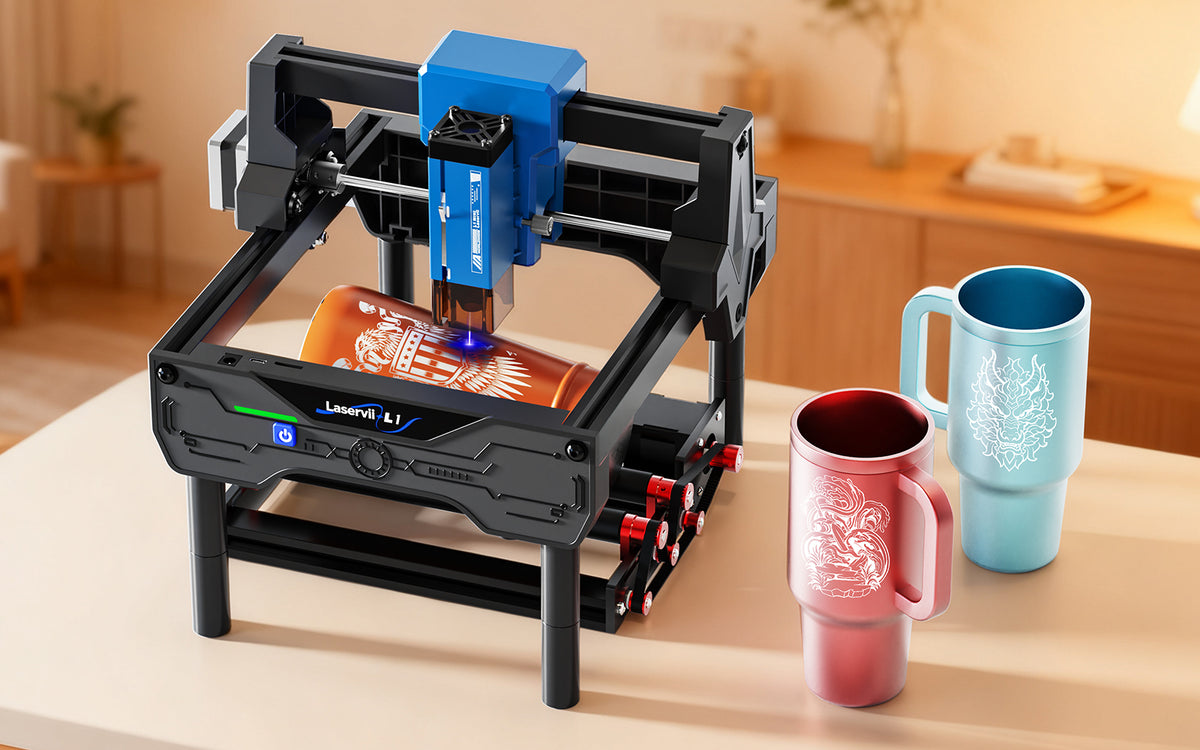

It Features a Rotating Shaft Capable of 360° Engraving on Small, Medium, And large Cylinders.
Product Comparison
Product
L1 Mini
From
$157.00
L1 Pro
From
$244.00
L1 Plus
From
$648.00
Laser Power
3W
7W/12W
24W
Working Area
150×150mm
300×300mm
420×420mm
Product size
296x277x170mm
483×487×184mm
615x630x180mm
Packaging size
345×312×125mm
525×186×260mm
655×245×170mm
Product Weight
1.5KG
2.5KG
4.4KG
Maximum Speed
12000mm/min
12000mm/min
12000mm/min
Connection Method
Bluetooth/APP/TF Card/Type C
Bluetooth/APP/TF Card/Type C
Bluetooth/APP/TF Card/Type C
Supported Formats
JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG
JPG, SVG, PNG, BMP, G-code, CAD, AI,CDR, DWG
JPG, SVG, PNG, BMP, G-code, CAD, AI,CDR, DWG
Supported Materials
Wood, plastic, paper, leather, bamboo, foam paper, PVC foam board, acrylic, etc.
Wood, plastic, paper, leather, bamboo, foam paper, stainless steel, PVC foam board, acrylic, etc.
Plywood, medium-density fiberboard,solid wood boards, paper, painted metal,kraft paper, leather, plastics, bamboo,etc.
Diverse Accessories Simplify Creation
Specifications
Machine & Power
Model
L1 Mini
Product dimensions
296 × 298 × 175 mm
Body color
Black and blue
Body material
Aluminum and injection-molded parts
Adapter
100-240V AC, 50/60Hz; 12V / 2A output
Machine input voltage
12V
Machine electrical power
24W
Net weight
1.5 kg
Processing Capability
Laser module
3W laser module
Specified continuous optical output
≥1.3W
Working area
150 ×150 mm
Maximum engraving speed
12,000 mm/min
Recommended engraving materials
Laser-safe wood, paper, leather, bamboo, foam paper and selected opaque acrylic/plastics
Accuracy & Laser
Engraving accuracy
±0.15 mm
X/Y positioning accuracy
±0.1 mm
Laser spot
0.12 × 0.08 mm
Wavelength
450 ± 5 nm
Focus mode
Manual focus
Focus distance
3.6 ± 0.5 mm from the laser-module housing surface
Easy Operation
Homing / limit function
Supported
Return to origin after job
Supported
Laser power adjustment
Supported
Power-loss resume
Not supported
Built-in display
Not supported
Connectivity & Software
Bluetooth
Supported
Type-C data connection
Supported
TF / microSD card
Supported
Wi-Fi
Not supported
USB flash drive
Not supported
Compatible software
LightBurn and LaserGRBL
Machine job files
.lbrn and .nc
Package & Environment
Packaged weight
2.2 kg
Inner package dimensions
340 × 307 × 121 mm
Outer package dimensions
345 × 312 × 125 mm
Operating temperature
5°C to 40°C
Operating humidity
20%-60% RH
Safety & Compliance
Laser safety configuration
Open-frame laser engraver with a Class IV laser module
